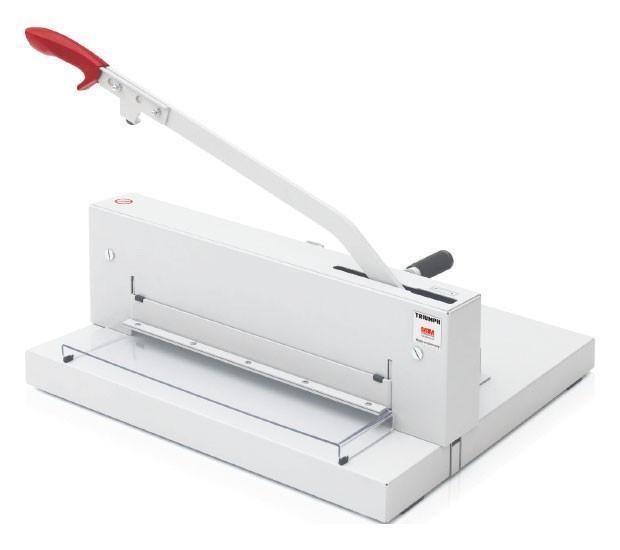

MBM Triumph 4300 Manual Tabletop Paper Cutter (Discontinued)

  • Sale
  • $ 1,209


Free shipping for 4300 Triumph Cutter

Capabilities

  • Cutting Height: ¾”
  • Cutting Width: 16-7/8”
  • Cut Type: Manual

Features of the Triumph Cutter 4300

  • Triumph 4300 is a manual cutter
  • Compact size allows for easy portability
  • Extra large cut lever requires minimal effort
  • Patented, lever-activated, fast-action clamp tightly holds paper stock
  • Side guide with measuring scale
  • Spindle-guided back gauge with calibrated crank and measuring scale
  • Strong Soligen steel blade
  • All-metal construction
  • Solid steel blade carrier and adjustable blade guides

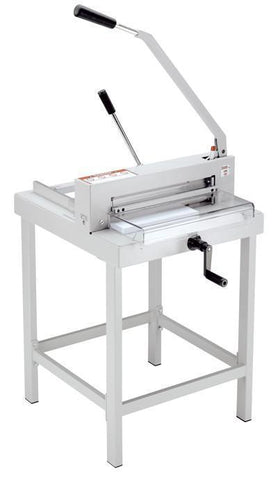

  • Optional stand sold separately
  • UL and C UL approved
  • "SCS" safety features included
  • Customer Favorite


Manufacturer Name MBM Readout Analog
Max Cutting Width 16 7/8'' Model# 4300
Cutting Height 3/4'' Weight 80 lbs.
Cutting Mode Manual Height 19 1/2"
Cutting Length Behind Blade 13 1/2" Width 28"
Cutting Length in Front of Blade 6 1/4'' Depth 22 1/2"
Clamp Type Manual Shipping Weight 80.0000
Blade Construction Solingen steel Shipping Width 27.5"
Back Gauge Adjustment Manual Shipping Length 26.5"
Safety Mechanism Safety shields; safety catch Shipping Height 19.5"





DESCRIPTION OF THE MBM TRIUMPH 4300 MANUAL CUTTER

With a cutting width of 16 7/8" and high-quality, German-steel blades that cut through ¾" H stack of paper, consider the Triumph 4300 for your print shop or mail room. Offering 13 ½" of a cutting length behind blade and 6 ¼" of table length in front of blade, the Triumph 4300 could be perfect for cutting all types of work, including flyers, brochures, bulletins, and more. For convenience, the side guide features a handy measuring scale, with measurements in both millimeters and inches.

Like all Triumph cutters, the Triumph 4300 is renowned for precision, safety, and ease of use. The SCS "Safety Cutting System" features guarantee user safety when operating this cutter. The hinged, transparent safety shield on the front table features a locking device for the blade lever. This means that the blade will only come down if the safety guard is fully closed. A clear safety cover also exists on the rear table for an extra level of protection. The blade changing device covers the cutting edge of the blade, guaranteeing user safety during this process. The operator can easily change the blade from the front of this cutter, without removing any of the machine covers. The cutting stick can also be rotated or changed from outside of machine. The patented, lever-activated clamp provides an even supply of pressure on your paper stock. This pressure helps keep your papers from shifting or sliding when making a cut.

For many offices or mail rooms, space is typically limited. A compact option for print shops, schools, and businesses, the Triumph 4300 offers dimensions of 22 ½" D x 28" W x 18 ½" H. Weighing in at a reasonable 80 lbs., this all-metal constructed heavy duty cutter is guaranteed to last for years.

Questions and Answers

Q: How is the 4300 different from the 4305 other than the optional stand?

A: The major difference is in the number of sheets it's capable of cutting. The clearance on the Triumph 4300 is only about .75" which means it could only cut a little over 100 sheets of standard paper at a time.

Q: I need to trim the corners off of business cards at a 45 degree angle, mitered basically. I have a wooden jig that will place them properly, but I can't tell how much the press that holds them down will cover, so I don't know if it will work.

A: There are ways that a Triumph paper cutter could be 'rigged' to make 45 degree cuts to the corners of business cards. It would require a contraption that holds them in place, and bringing the false clamp down to line it up properly, and finally bringing down the blade once everything is in position. It would be time consuming but possible.

Quick Specs

Work Flow:4 Triumph Cutter Performance Bar
Overall Features:4 Triumph Cutter Performance Bar
Cut Width: 16-7/8" 3 Triumph Cutter Performance Rating
This paper cutter offers precision, durability and enhanced safety, a compact & affordable paper cutter. Cutting height of 3/4".

Description of the Triumph 4300 Manual Tabletop Paper Cutter

The Triumph 4300 manual paper cutter offers high-quality, German steel blades which cut through a paper stack 3/4" in height. With a flexible cutting width of 16 7/8”, the user is can make an array of different cuts at different sizes. This manual cutter offers a measuring scale in both millimeters and inches, ensuring that the user makes a more accurate cut every time. The Triumph 4300 offers 13 ½” cutting length behind the blade and 6 ½” table length in front of the blade. Perfect for tabletop use, the compact Triumph 4300 offers dimensions of 22 1/2" D x 28" W x 18 1/2" H. Weighing a reasonable 80 lbs., this all-metal constructed manual cutter is still a portable tool. For all cutting applications and projects, user safety is vital. Triumph’s renowned Safety Cutting System (SCS) provides features meant for ultimate operator protection. The blade lever features a locking device, preventing cutting action unless the hinged, transparent safety guard is completely closed. A transparent safety cover is also available on the rear table for extra protection. Triumph’s cutting blades are extremely sharp and require extreme carefulness when switching out the blade. Luckily, this process can be completed from the front of the cutter without having to remove any machine covers. The blade changing device covers the cutting edge of the blade for user protection. Adjust the blade depth or turn the cutting sticks from the outside of this unit as well. The patented, lever-activated, fast-action clamp provides optimum clamp pressure to hold your documents while you make the cut. This helps keep your paper stack stationary and prevents tearing or wrinkling.

Video of the Triumph 4300 Manual Tabletop Paper Cutter

Full Specs of the Triumph 4300 Manual Tabletop Paper Cutter

SKU MBM4300-0449
Cutting Width 16.875"
Cutting Height .75"
Cutting Length Behind Blade 13.5"
Table Length in Front of Blade 6.25"
Narrow Cut 1.5"
Height 18.5”
Width 28”
Depth 22.5”
Shipping Weight 80 lbs
