Triumph Cutter 4810 EP (Discontinued)

  • Sale
  • $ 0

This product has been discontinued

Features of the Triumph 4810 EP Paper Cutter

Triumph 4820 EP has a high storage capacity, programmable "EP" back gauge control module with 10 button keypad and LED display that stores 99 programs (up to 99 steps each) and frequently used measurements | Bright, LED optical cutting line guarantees an accurate cut | Semi-automatic cutter with electric blade and back gauge drive | Electronic hand wheel with variable speed control for manual back gauge setting | The manual spindle clamp of this Triumph cutter is guided on both sides to apply even pressure along entire cutting width | Control unit also features a repeat cut button (up to 9 repeat cuts can be integrated into a program in a single step), eject function, and "set" function key for reference measurement | Digital measurement readout in cm or inches (accurate to 1/10 mm or 1/100 inch) | MBM's self-diagnostic system with error indication on display | German made Solingen steel blade | Solid steel blade carrier and adjustable blade guides | Dual side guides on front and rear tables | Spindle-guided back gauge with narrow separations and plastic gliders | All-metal construction | Stand with storage shelf | SCS, UL and C UL approved

Quick Specs

Work Flow:4 Triumph Cutter Performance Bar
Overall Features:4 Triumph Cutter Performance Bar
Cut Width: 18-7/8" 3 Triumph Cutter Performance Rating
Electric blade and clamp drive paper cutter has fast, precise cutting, Comes with line light cutting guide. Cutting height of 3".

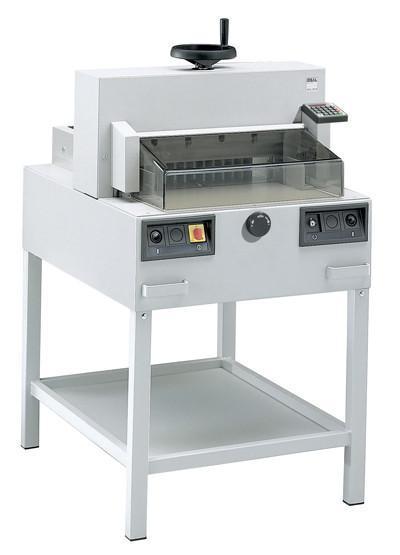

Description of the Triumph 4810 EP Paper Cutter

This high storage capacity, Triumph 4810 EP semi-automatic paper cutter provides the operator with superior cutting capability. With a programmable “EP” back gauge control module equipped with a 10 button keypad, the Triumph 4810 EP is perfect for cutting jobs of high volume. The advanced LED display stores 99 programs, up to 99 steps for each, and permits up to 9 repeat cuts to be integrated into a program in one single step. This convenient feature also allows you to store frequently used measurements, making your cutting jobs even more efficient. The digital display of this Triumph cutter shows measurements in either centimeters or inches, and has proven to be accurate to 1/10 mm or 1/100 in. The back gauge control unit comes equipped with an eject function, repeat key, and “set” function for referencing measurements. The module also has a self-diagnostic tool, indicating to the user if there is any error in the system. Each Triumph 4810 EP programmable paper cutting knife and back gauge is electrically controlled. Two side guides on the front table and back gauge allow precise positioning, even for small paper stocks. An electronic hand wheel with variable speed control is offered for manual back gauge setting. Your paper stock is guaranteed to remain secure and stationary with the manual spindle clamp. This Triumph paper cutter comes with Solingen steel blades and easily adjustable blade guides. Before you make a cut, the LED optical cutting line indicates the exact location of the cut and helps you to properly position trim marks. “SCS” safety features include a safe blade changing device, transparent automatically locking guards, safety lock with key and main switch, and automatic blade return from any position.

Full Specs of the Triumph 4810 EP Paper Cutter

SKU MBM4810-0410
Cutting Width 18-7/8"
Cutting Height 3"
Cutting Length Behind Blade 17-11/16"
Table Length in Front of Blade 13-5/8"
Narrow Cut 1-3/8"
Motor 1.5 HP
Height 53-1/2”
Width 29-3/4”
Depth 38-1/4”
Shipping Weight 524 lbs
