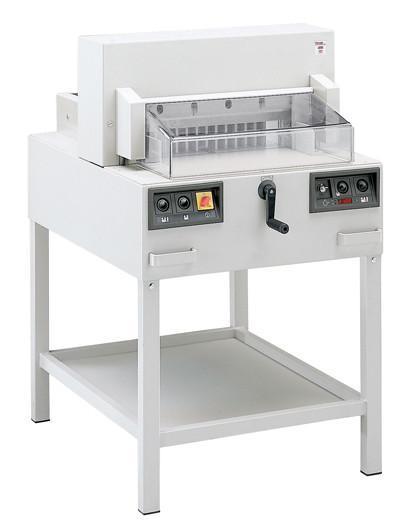

MBM Triumph 4850 D Paper Cutter (Discontinued)

  • Sale
  • $ 8,999

Features of the Triumph 4850 D Paper Cutter

This automatic paper cutter comes with digital display for precise back gauge positioning | Triumph 4850 D also features the bright, new LED optical cutting line to ensure precision | Automatic clamp is guided on both sides to apply even pressure along entire cutting width (can be lowered or raised independently from blade) | Electric blade and clamp drive | Dual side guides on front and rear tables | Spindle-guided back gauge with calibrated crank, narrow separations, and plastic gliders | Sturdy Solingen steel blade | Solid steel bade carrier and adjustable blade guides | MBM's cutters are all-metal constructed | Stand with storage shelf | "SCS" safety features guaranteed | UL and C UL approved

Quick Specs

Work Flow:4 Triumph Cutter Performance Bar
Overall Features:4 Triumph Cutter Performance Bar
Cut Width: 18-7/8" 3 Triumph Cutter Performance Rating
Electric blade and clamp drive paper cutter has fast, precise cutting, Comes with line light cutting guide. Cutting height of 3".

Description of the Triumph 4850 D Paper Cutter

With its electrically controlled and automatic functions, the Triumph 4850 D paper cutter is a step up from the semi-automatic cutter. The automatic clamp, like the semi-automatic cutter, is guided on both sides of the cutter and applies an even amount of pressure along the cutting width of the paper stock. However, the improved automatic feature for the Triumph 4850 D allows the clamp to be lowered or raised independently from the cutting knife. By pushing the two buttons on the front of the cutter, the electric blade will automatically make an accurate cut based off of your measurements. To move the back gauge, simply use the spindle handle on the front of the Triumph cutter. The Triumph 4850 cutter offers a digital measurement display that confirms the exact positioning of the back gauge. The bright, LED optical cutting line also allows you to see precisely where your cut will be made. The narrow separations and plastic gliders on this Ideal paper cutter ensure that your paper stock maintains its position on the back gauge without damage. Ideal paper cutters come standard with “SCS” safety features, including reliable safety locks, automatic clamp return, and disk brake for immediate blade stop. Adjustments can be done simply for the knife, cutting sticks, and blade depth without having to remove the machines covers. The optional cutter stand offers a storage shelf, perfect for storing any extra supplies.

Full Specs of the Triumph 4850 D Paper Cutter

SKU MBM4850d-0416
Cutting Width 18-7/8"
Cutting Height 3"
Cutting Length Behind Blade 17-11/16"
Table Length in Front of Blade 13-5/8"
Narrow Cut 1-1/4"
Motor 2 HP
Height 48-1/2”
Width 29-3/4”
Depth 38-1/4”
Shipping Weight 556 lbs
