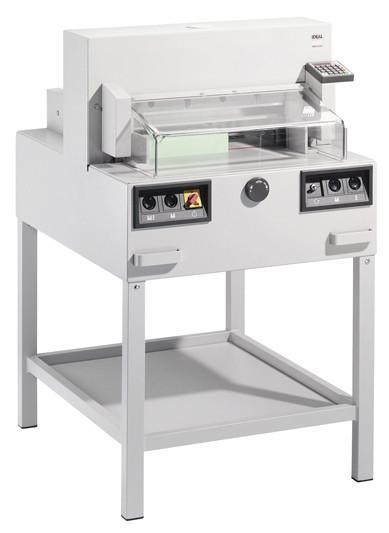

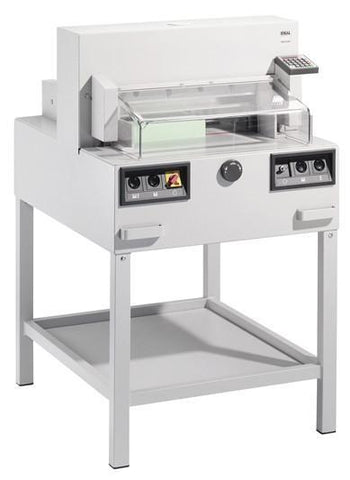

Triumph Cutter 4850 EP (Discontinued)

  • Sale
  • $ 0


Features of the Triumph 4850 EP Paper Cutter

Triumph 4850 EP has a high storage capacity, programmable EP back gauge control unit with 10 button keypad | LED display stores 99 programs (up to 99 steps each) and frequently used measurements | New bright, LED optical cutting line for accurate cuts | Automatic paper cutter with eletric blade, clamp, and back gauge drive | Digital measurement readout in cm or inches (accurate to 1/10 mm or 1/100 inch) | Control module features repeat cut (up to 9 repeat cuts can be integrated into a program in a single step) and eject functions | "Set" function key for reference measurement | Self-diagnostic system with error indication on display | Automatic clamp is guided on both sides to apply even pressure along entire cutting width (can be lowered or raised independently from blade) | Triumph 4850 EP has dual side guides on front and rear tables | Spindle-guided back gauge with narrow separations and plastic gliders | Electronic hand wheel with variable speed control for manual back gauge setting | All-metal construction | Stand with storage shelf | Solingen steel blade | Solid steel blade carrier and adjustable blade guides | UL and C UL approved | Customer Favorite



Quick Specs

Work Flow:4 Triumph Cutter Performance Bar
Overall Features:4 Triumph Cutter Performance Bar
Cut Width: 18-7/8" 3 Triumph Cutter Performance Rating
Easy, push-button performance on this fully automatic paper cutter. Perfect for safe, high speed production.

Description of the Triumph 4850 EP Cutter

The Triumph 4850 EP paper cutter is perfect for a large volume cutting job. This automatic paper cutter has a high storage capacity rating and programmable “EP” back gauge control unit equipped with a 10 button keypad. With LED display, the control unit is capable of storing up to 99 programs, 99 steps per program, as well as regularly used cutting measurements. Simply program any measurement, digital measurements are displayed in centimeters or inches, push the two buttons located on the front of the cutter, and make a perfect cut every time. This Triumph paper cutter guarantees accuracy to 1/10 of a millimeter or 1/100 of an inch. Greater precision is also ensured with the narrow separations and plastic gliders, located underneath the front transparent safety cover. In addition to having an electric blade and back gauge drive, the Triumph 4850 EP has an automatic clamp that can be lowered or raised independently of the cutting knife. This clamp applies pressure and tightly secures the paper stock, assuring the user that their cut will be accurate. The back gauge control module features a repeat cut, allowing up to 9 repeat cuts to be integrated into a program in one single step. The Ideal paper cutter’s electronic hand wheel has variable speed control for manual back gauge setting. You can also use the “set” function key to reference any measurement. The self-diagnostic tool, which informs the user of an error in the system, is also convenient if a problem occurs. Like the semi-automatic paper cutters, the Triumph 4850 EP includes dual side guides on the front and rear tables, Solingen steel blades, the steel blade carrier, and LED optical cutting line. The Triumph cutter has a stand with a storage shelf, the perfect storage place for extra supplies.

Full Specs of the Triumph 4850 EP Cutter

SKU MBM4850-0413
Operational Features Automatic, Programmable
Cutting Width 18 7/8"
Cutting Height 3"
Cutting Length Behind Blade 17 11/16"
Narrow Cut 1 3/8"
Table Length in Front of Blade 13 5/8"
Motor 2 HP
Electrical Requirements 115 V, 60 Hz
Height 48 1/2"
Width 29 3/4"
Depth 38 1/4"
Shipping Weight 556 lbs.
