Features of the Triumph 4860 Paper Cutter

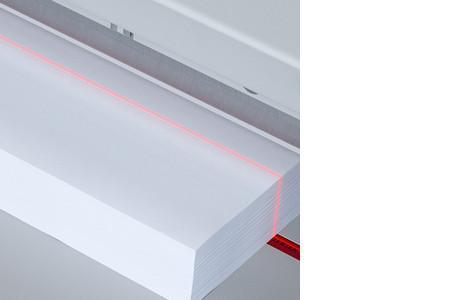

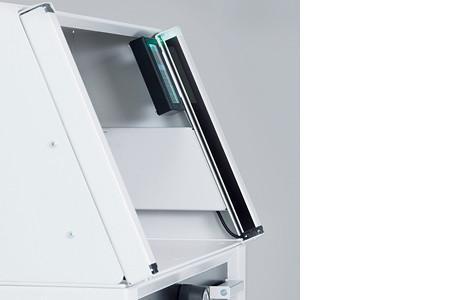

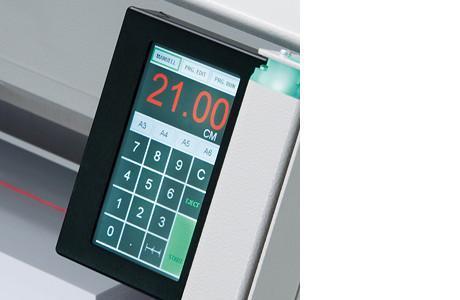

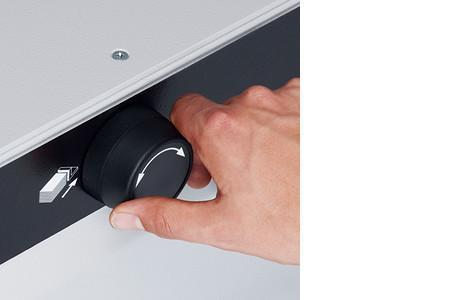

IR light beam safety curtain on front table | Triumph 4860 has a high storage capacity, programmable EP back gauge control unit with 10 button touch pad | LED display stores 99 programs (up to 99 steps each) and frequently used measurements | New bright, LED optical cutting line for accurate cuts | Automatic paper cutter with electric blade, clamp, and back gauge drive | Digital measurement readout in cm or inches (accurate to 1/10 mm or 1/100 inch) | Control module features repeat cut (up to 9 repeat cuts can be integrated into a program in a single step) and eject functions | "Set" function key for reference measurement | Self-diagnostic system with error indication on display | Automatic clamp is guided on both sides to apply even pressure along entire cutting width (can be lowered or raised independently from blade) | Triumph 4860 ET has dual side guides on front and rear tables | Spindle-guided back gauge with narrow separations and plastic gliders | Electronic hand wheel with variable speed control for manual back gauge setting | All-metal construction | Optional Stand | Solingen steel blade | Solid steel blade carrier and adjustable blade guidesQuick SpecsWork Flow:
Overall Features:
Cut Width: 18-7/8"
Easy, push-button performance on this fully automatic paper cutter. Perfect for safe, high speed production.

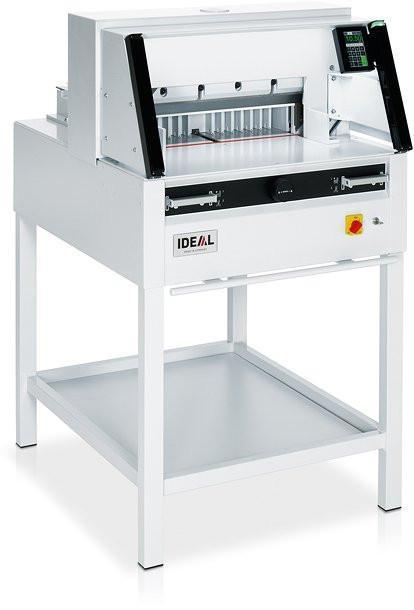

Description of the Triumph 4860 Paper Cutter

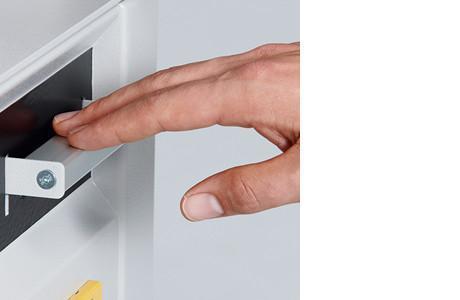

With the Triumph 4860 you are getting a comprehensive safety package with its IR light beam safety curtain on the front table, its transparent safety cover on the rear table, automatic blade and clamp return from every position, and disc brake for instant blade stop. It also is equipped with a 24 volt controls (low voltage) and an ideal safety drive to ensure that it is one of the safest paper cutters on the market today. It is not only safe, it is easy to operate. The 4860 offers MBM’s patented Easy Cut technology that includes the electronic blade activation bars for two-hand operation as well as an automatic clamp and an easy-to-use touch pad. Not only does this professional paper cutter come equipped with electronic blade activation bars and a multilingual touch pad, it also has an electronic hand wheel. If you do not want to use the electronic, programmable control module to position the back gauge, you can use the electronic hand wheel. The hand wheel offers infinitely variable speed control: extremely slow to extremely fast. This more than reliable paper cutter accepts a wide range of documents. The 4860 has a cutting width of 18 ⅝” and a cutting height of 3”. It can also perform a narrow cut of 1 ⅜” on a table that has a depth of 17 ⅝”. The multilingual touch pad offers 99 programs with 99 steps in each, which can be stored in its high capacity memory for easy operation. The memory also stores repeat and/or frequent cuts. With this innovative touch pad, you can also use the automatic “set” function to reference measurements via the start button. It also allows you to utilize an “eject” function that pushes out the paper. The 4860 has a self-diagnostic system, which provides error indication on display.Full Specs of the Triumph 4860 Paper Cutter
SKU | MBM4860-0417L |
Cutting Width | 18-5/8" |
Cutting Height | 3" |
Cutting Length Behind Blade | 17-11/16" |
Table Length in Front of Blade | 13-5/8" |
Narrow Cut | 1-3/8" |
Optional Features | Automatic, Programmable |
Motor | 2 HP |
Height | 50-7/8” |
Width | 29-3/4” |
Depth | 39” |
Shipping Weight | 607 lbs |
