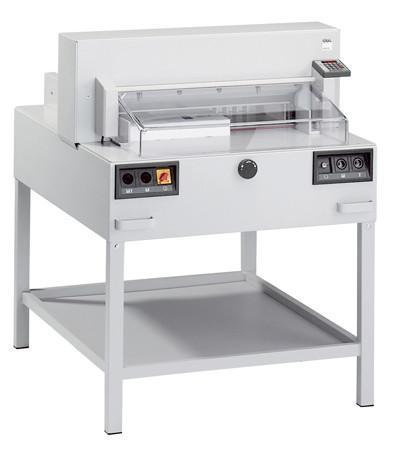

Features of the Triumph 6550 EP Paper Cutter
Triumph 6550 EP cuts up to an amazing 25 1/2 inch cutting width, which accommodates parent stock | Triumph 6550 EP has an eletric blade, clamp, and back gauge drive | This high storage capacity, programmable EP back gauge control module has a 10 button keypad and LED display stores 99 programs (up to 99 steps each) and frequently used measurements | Control module features repeat cut and eject functions | "Set" function key for reference measurement | Up to 9 repeat cuts can be integrated into a program in a single step | Digital measurement readout in cm or inches (accurate to 1/10 mm or 1/100 inch) | Automatic clamp is guided on both sides to apply even pressure along entire cutting width (can be lowered or raised independently from blade) | Dual side guides on front and rear tables | Spindle-guided back gauge with narrow separations and plastic gliders | Electronic hand wheel with variable speed control for manual back gauge setting | Bright, LED optical cutting line | Self-diagnostic system with error indication on display | Safety Cutting System features come standard | German manufactured Solingen steel blade | Solid steel blade carrier and adjustable blade guides | MBM's cutter is all-metal constructed | Stand with storage shelf | UL and C UL approvedQuick SpecsWork Flow:
Overall Features:
Cut Width: 25-1/2"
Advanced EP programmable keypad is just one feature of this paper cutter. Wide blade area of 25 1/2".
Description of the Triumph 6550 EP Paper Cutter
For wider paper cutting projects, the Triumph 6550 EP paper cutter is the best choice. This MBM cutter has a cutting width of 25-1/2 inches to accommodate parent stock. With a programmable “EP” back gauge control module that will store up to 99 programs, up to 99 steps each, the Triumph 6550 EP guarantees optimal success in every cutting project. The 10 button keypad is easy to use and program your frequently used measurements. The digital display measurements can be read in either centimeters or inches, proving to be accurate to 1/10 of a millimeter or 1/100 of an inch. The Triumph 6550 EP is all metal constructed and includes a stand with a shelf for your extra storage for your knife changing tools. With the LED optical cutting line that reveals exactly where the cut will be made, as well as standard “SCS” comprehensive safety package, this MBM cutter ensures that your cutting job will be accurate and never hazardous. The cutting blade, clamp, speed control, and back gauge drive are all electric in the Triumph 6550 EP paper cutter. The automatic clamp, which can be moved up or down independent of the blade, is guided on both sides of the cutter to apply an even amount of pressure along the entire cutting width. Narrow separation and plastic gliders on the back gauge provide more assurance that your paper stack will remain damage free and can be repositioned smoothly. This paper cutter also allows you to reference any programmed measurement using the “set” function program.Full Specs of the Triumph 6655 Paper Cutter
SKU | MBM6550-0423 |
Cutting Width | 25-1/2" |
Cutting Height | 3" |
Cutting Length Behind Blade | 24" |
Table Length in Front of Blade | 16-1/4" |
Narrow Cut | 7/8" |
Optional Features | Automatic, Programmable |
Motor | 2 HP |
Height | 48-1/4” |
Width | 39-1/4” |
Depth | 49-3/4” |
Shipping Weight | 801 lbs |
