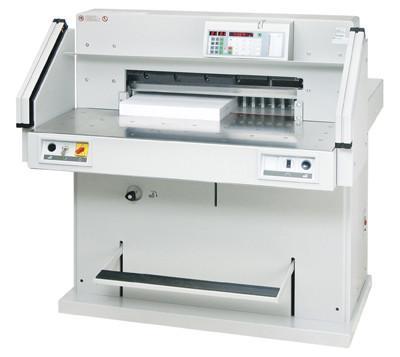

MBM Triumph 721-06 LT Paper Cutter (Discontinued)

  • Sale
  • $ 23,999


Features of the Triumph 721-06 LT Paper Cutter

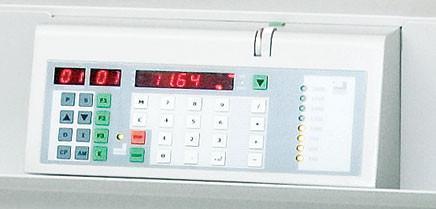

The Triumph 721-06 LT has a high storage capacity, programmable back gauge control module with 10 button keypad and LED display stores 99 programs (up to 99 steps each) and frequently used measurements | Digital measurement readout in cm or inches (accurate to 1/10 mm or 1/100 inch) | Bright, LED optical cutting line | Control module features repeat cut, eject (with and without program mode), and memory functions as well as a delete and insert mode for modifying program steps | Up to 9 repeat cuts can be integrated into a program in a single step | Automatic measuring correction in case of back gauge displacement | "Set" function key for reference measurement | Self-diagnostic system with error indication on display | Integrated calculator | Simply push the two buttons on the front of the Triumph 721-06 LT for fast back gauge movement (forward and reverse) | Electric blade and back gauge drive | Precision swing-cut blade movement | Hydraulic clamp drive | HSS Solingen steel blade | Solid steel blade carrier and adjustable blade guides | Clamp pressure is fully adjustable between 550 and 4,400 psi | False clamp and foot pedal allows for pre-clamping | Spindle-guided back gauge with narrow separations and plastic gliders | Electronic hand wheel with variable speed control for manual back gauge setting | Durable stainless steel work surface, front and rear | Air jets on front and rear tables allow easy movement of paper | All-metal construction | Optional side tables with stainless steel surface extend work area | MBM guarantees a comprehensive "SCS" safety package | UL and C UL approved

Quick Specs

Work Flow:4 Triumph Cutter Performance Bar
Overall Features:4 Triumph Cutter Performance Bar
Cut Width: 28" 3 Triumph Cutter Performance Rating
This automatic paper cutter has keylock control, a cutting line light, digital readout, and laser safety guides for efficiency

Description of the Triumph 721-06 Paper Cutter

MBM’s hydraulic paper cutter offers a more sophisticated back gauge control module and programming capability. Like many of the more advanced paper cutters, the Triumph 721-06 LT has a high storage capacity, programmable back gauge control module with a 10 button keypad and LED display that stores up to 99 programs (99 steps per program, repeat cut function). With this control unit is also equipped with new memory functions, delete and insert mode to modify any program, and an incorporated calculator. The “set” key allows the user to reference any measurement, as well as program frequently used measurements. Another new feature of the Triumph 721-06 LT is the automatic measuring correction tool, which will correct the back gauge measurements should they ever become displaced. If a problem occurs in the system, the self-diagnostic tool will display an error warning on the control unit to the operator. This MBM Triumph paper cutter will provide the user with a manageable way to position their paper stock. The new air jets located on the front and rear tables allow for smooth movement of the paper on the back gauge. With the push of two buttons, the electric back gauge can be quickly moved either forward or backward with ease. Moreover, the Triumph 721-06 LT offers a spindle-guided back gauge, with narrow separations, plastic gliders, and electronic hand wheel for manual speed variation. The hydraulic clamp pressure on this Triumph paper cutter is fully adjustable between 550 and 4,400 psi. A false clamp is provided to cushion the paper stock and ensure that the paper remains damage free. The foot-pedal allows for pre-clamping, in case the user wishes to manually clamp their paper stock. The HSS Solingen steel blades permit the swift precision swing-cut blade movement, making an accurate cut to 1/10 mm or 1/100 in.

Full Specs of the Triumph 721-06 Paper Cutter

SKU MBM721LT-0433
Cutting Width 28"
Cutting Height 3”
Cutting Length Behind Blade 28-3/8"
Table Length in Front of Blade 20-7/8"
Narrow Cut 3/4"
Optional Features Hydraulic, Programmable
Motor 2 HP
Electrical Requirements 220 V, 3 Phase
Height 52-1/2”
Width 51-3/8”
Depth 59-1/2”
Shipping Weight 1,686 lbs
