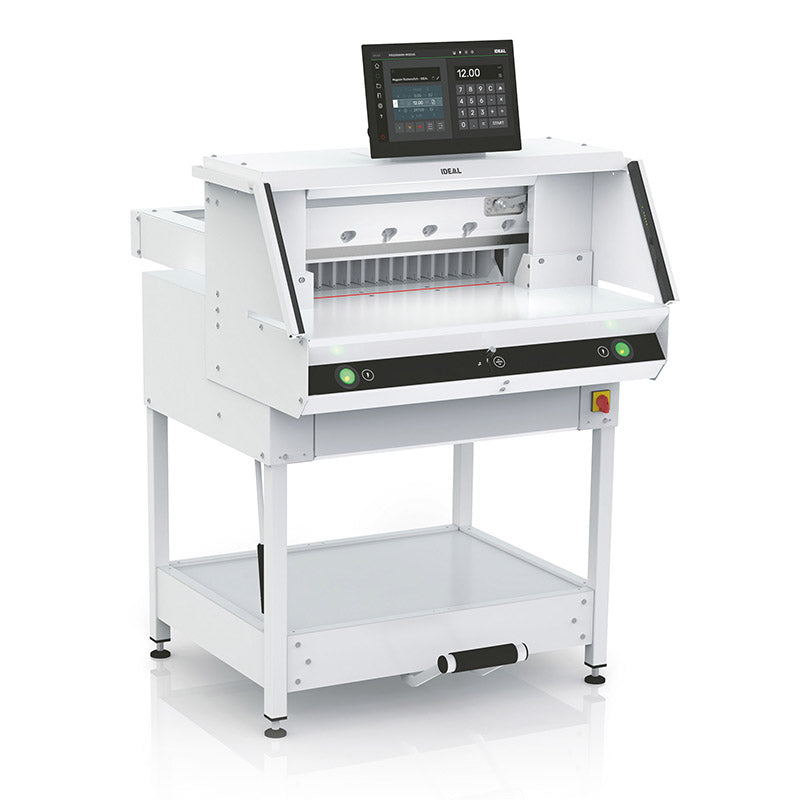

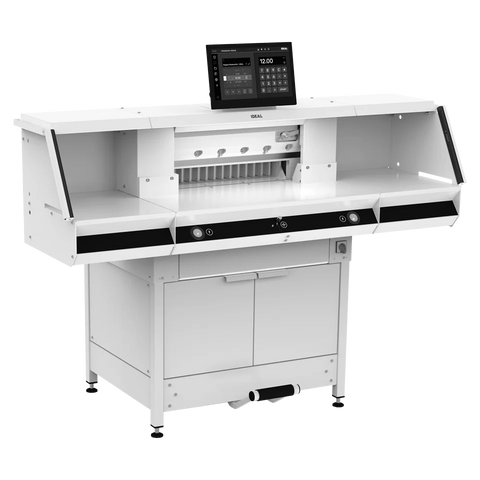

MBM Triumph 56 Guillotine Paper Cutter

  • Sale
  • $ 21,739
  • SKU: MBM0056-0001


Basic Specs of the MBM Triumph 56 Guillotine Paper Cutter

  • Cutting Width: 22 inches
  • Cutting Height: 3.15 inches
  • Length Behind Blade (narrow cut): 1 ¼ inches
  • Table Depth: 22 inches

Features of the MBM Triumph 56 Paper Cutter

  • Display and operation via 15.6“ multi-touch display.
  • PRECISION DRIVE: Electro-mechanical precision blade drive and hydraulic clamp drive (patent pending).
  • Programmable and manual backgauge positioning with optimum operator ergonomics and logic.
  • Adjustable backgauge with narrow separations and plastic gliders.
  • Spindle guided precision backgauge.
  • Clamp bar with infinitely programmable adjustment of the required clamping pressure via the touchscreen.
  • Electronically controlled false clamp plate, ideal for delicate work - optimizes the distribution of the clamping force where required.
  • Independent mechanical foot clamp (patent pending).

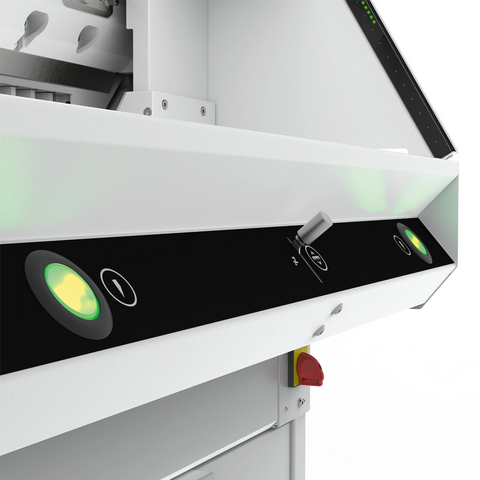

  • EASYTOUCH: Simple and safe two-hand cut release - via push buttons with illuminated colored status display.
  • Infinitely dimmable front table illumination (LEDs).
The MBM Triumph 56 Guillotine paper cutter is one of the biggest and best Triumph cutters and is known for its strength, cutting capabilities, gorgeous display and powerful functions.


Quick Specs

Work Flow:4 Triumph Cutter Performance Bar
Overall Features:4 Triumph Cutter Performance Bar
Cut Width: 22" 3 Triumph Cutter Performance Rating
Electric blade and clamp drive paper cutter has fast, precise cutting, Comes with line light cutting guide. Cutting height of 3.5".

Description of the MBM Triumph 56 Paper Cutter

Powerful software of the latest generation
• Functional, clear graphical user interface with intelligently divided display
• Cut Control: Main functions directly accessible via self-explanatory icons
• Intuitive creation of cutting programs with user guidance and programmable clamp pressure
• User guidance for handling the material to be cut during programme run
• Data Manager: Freely selectable folder structure and individually nameable file names for the saved cutting programs/print jobs
• Favorites function; most recently used files
• Convenient search function
• Extensive, individual, programmable operator/default settings: different customers, projects, print jobs; presettings for clamp pressure, backgauge speed, etc.
• Adjustable energy-saving mode
• Error log
• Cutting programmes stored via 4GB USB stick (USB stick included in the scope of delivery

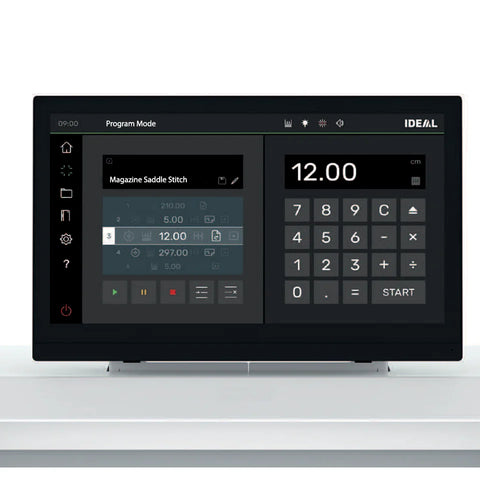

Touch display with intuitive operation, and many customized setting options
• Illumination of the working area

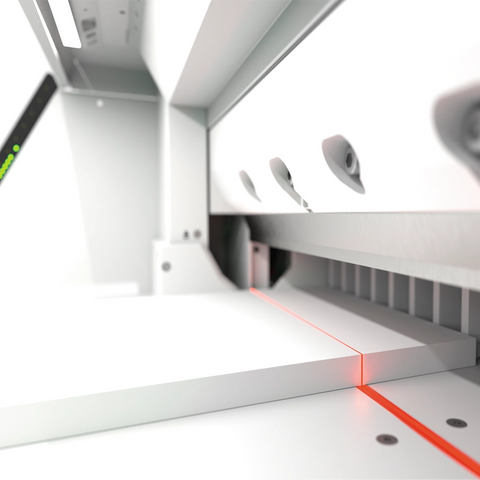

• Cutting line indicator
• Touch screen brightness
• Backgauge feed speed
• Clamping pressure
• Dimmable cut activating buttons
• Volume of touchscreen speaker
• Measurement readout switchable at any time (mm, cm, inches)
• Everything in view on the display - all screen views show centrally: time; clamping pressure; cutting table illumination; cutting line indicator; display loudspeaker

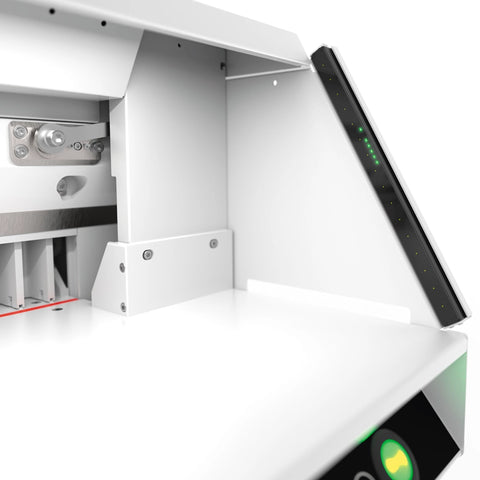

• Status of IR safety light beam
• Left: Menu bar with main functions; saved favorites in the standard view. Right: numeric keypad

Backgauge program control
• Electrically operated backgauge control, individually programmable via touchscreen
• Program view: current program steps are displayed in the wheeler
• Multilingual operator guidance
• Units of measurement can be changed at any time, selectable in mm / cm / inch (display accuracy to 1/10 mm or 1/100 inch)
• Thousands of programs with any number of program steps storable (up to 99 repeat cut sequences can be integrated into a program as one single program step)
• Program runs automatically
• Direct input of measurements via numeric keypad for manual work
• Integrated calculator (four basic arithmetic operations)
• Automatic SET function for reference measurement
• EJECT function – for pushing out the paper – can be integrated into cutting programs



Full Specs of the Triumph 56 Guillotine Paper Cutter

SKU MBM0056-0001
Cutting Width 22"
Cutting Height 3.5"
Narrow Cut 1-1/4"
Optional Features Automatic, Digital Display
Power 230 V
Height 60"
Width 38”
Depth 48”
Shipping Weight 695 lbs
